DIGITAL FILE Crawler 4320 Dual Cab 1/10 RC Body

    • DIGITAL FILE Crawler 4320 Dual Cab 1/10 RC Body

    THIS IS A DIGITAL FILE FOR 3D PRINTING, NOT A PHYSICAL PRODUCT. Physical product sold separately.

    PLEASE make sure your 3D printer is able to print a minimum size of 220x175x150mm before purchasing.

    *UPDATE: Dashboard, steering wheel and Short Nose version have been added.
    Mounting the dashboard and steering wheel will ideally require printing of a new cab. But can also be done by manually drilling holes in an existing cab. Be careful not to drill all the way through.

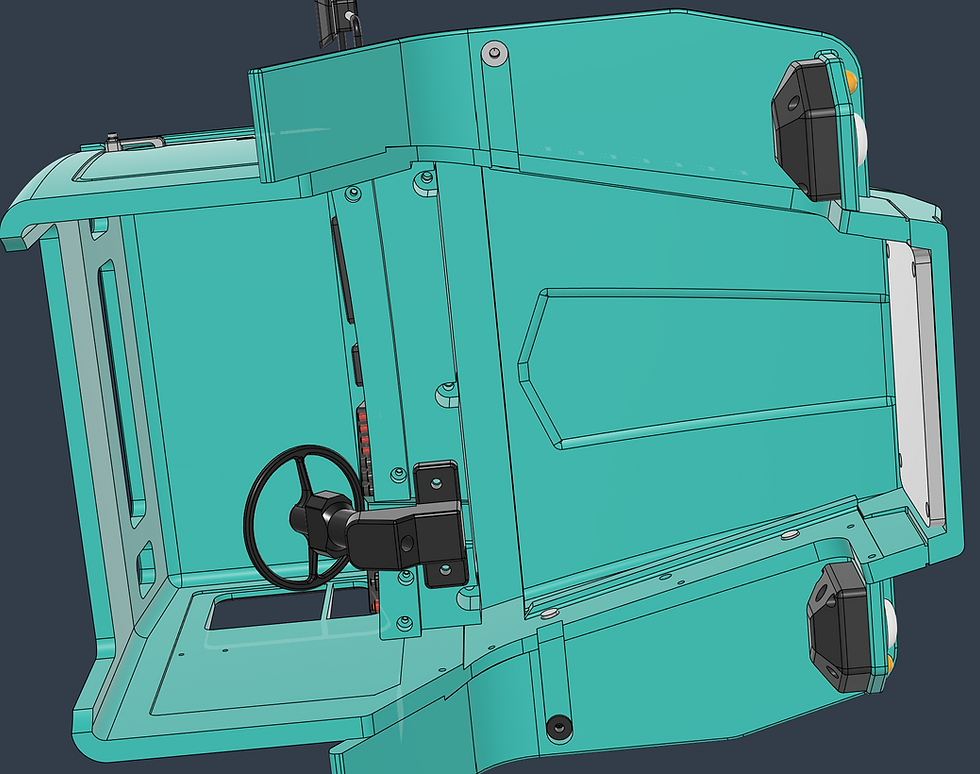

    Please see renders to for instructions on mounting dashboard and steering wheel.
    Hardware required for mounting dashboard and steering wheel:
    - M3x10 - 3
    - M2x10 - 4
    - M2x15 - 3
    - M2x20 - 1

    The Crawler 4320 Dual Cab is a version of the “Ural 43206-0551” variant of the line of UraI 4320 trucks. We also did a Single Cab version which can be found here.

    Designed in incredible detail, we have also included A TON OF ACCESSORIES and addons specific to this truck Cab, leading to a total of 70 pieces! The design was originally intended as a dual cab with 4 doors and a 4x4 drivetrain, it is made to fit on 1/10 scale RC crawlers with a wheelbase of 420mm and tyre height of 120mm for true scale proportions. It is also recommended to have a tyre to tyre outermost width of 230mm for proportions, however 240 or 250mm won’t look too far off. The standard 313mm or 12.3in wheelbase crawlers is the absolute minimum. A custom 6x6 build will look especially unique with this body!

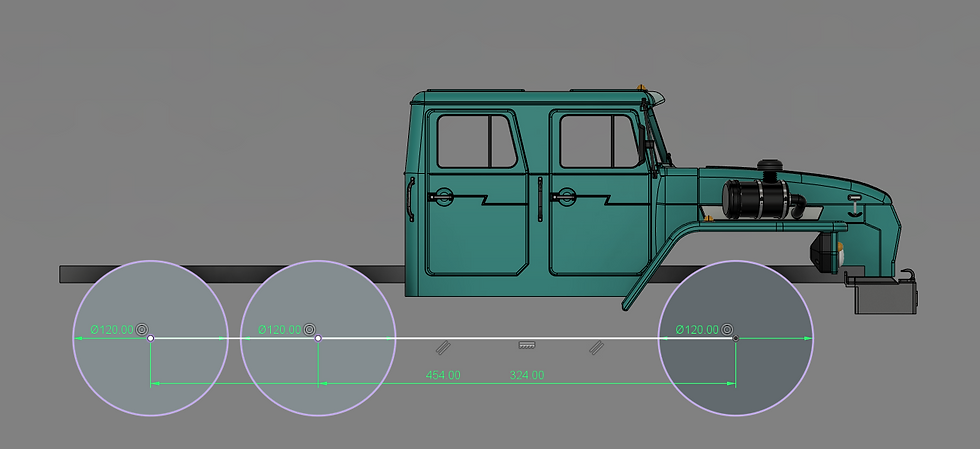

    Scale drawn diagrams of 420mm, 353mm, and 313mm wheelbases are uploaded to help you decide which wheelbase is suitable for your build.


    Assembly instructions:
    Instructions can be found in the tab below, or here.


    *It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.*

    Should you need any help, please do not hesitate to contact us!


    This build was achieved using a custom stretched Axial SCX10 iii chassis. Learn more about this awesome build here!

    • Included Options

      Cab:

      • Cab full (the cab is a 1 piece print, including the roof, flanks, and the cab itself. This is the cleanest print but requires a printer that can print a minimum of 385x175x165mm.)



      • Cab split version (comes in 3 parts. The cab, roof, and flanks. This is the quickest print option as it uses the least amount of supports. Requires a printer that can print a minimum of 220x175x150mm.)



      • Cab side panels (comes in 2 varieties. The vented version can be fitted onto both sides of the cab. A special version for the right side is also included specifically for use with the air filter.)



      Bonnet:

      • Bonnet  bump (bump version has the engine clearance bump and is more accurate to real life)



      • Bonnet smooth (doesn’t have the bonnet bump)




      Fender:

      • LED version (has cable routing for 3mm LED light for fender indicator light)



      • Standard version (Does not have routing, does not have hole to fit 3mm LED light for indicator light. Still allows the cab light bucket to be fitted)



      Bumper:

      • Blank number plate (hides the 2x bumper mount screws and gives a clean look)



      • Logo number plate (ahead RC’s logo on the front. Hides bumper mount screws)



      • Custom number plate (it is possible to design your own bumper plate with the following specs to fit into the bumper’s slot. [Draw a 3D rectangle with dimensions of 52*12*5mm. Add 2mm fillets to each corner. Add your own number or design to the front of the plate. At the back of the plate, draw a centerline and place two 5mm circles with a total spacing of 43mm apart. Cut the circles into the number plate to a depth of 3.2mm.] It may be necessary to shrink the outer perimeter by 0.2mm for a looser and better fit.)



      • Bumper mount (there are 6 different bumper mounts included, each varying in different offsets to best suit your rig’s ground and body clearance. The bumper mounts are designed to slot directly into the standard crawler bumper slots, with 43mm width from post to post.)



      Accessories:

      • Cab side handles (3 types of handles available to mount to the side of the cab. Long railing, short railing, and standard grab handle)

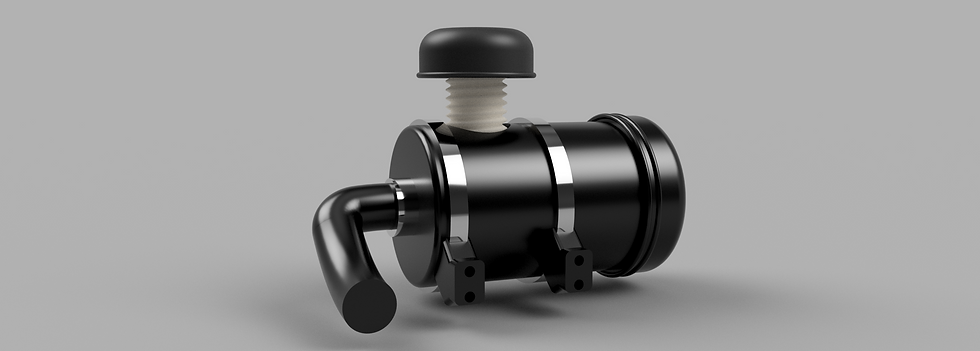

      • Air filter (Can be fitted with the included “mushroom” air filter part. If using the air filter, please also use the appropriate cab side panel to allow mounting it. If not using air filter, then the standard cab side panel with vents can be used instead)



      • Horn (3 styles of horn to choose from which can be mounted anywhere on the body using either superglue or hot glue)

    • Files To Be Printed Twice

      • Bonnet Latch

      • Fender light bucket

      • Fender headlight lens

      • Fender blinker light bucket

      • Fender blinker lens

      • Fender light

      • Door handle (print a total of 4)

      • Cab light (print a total of 3)

      • Accessories cab handle (whichever version you chose, double it)

      • Bumper hook

      • Cab hinge

    • Required Hardware

      • 22x M2*5 Socket head
      • 28x M2*10 Socket head
      • 2x M2*15 Socket head
      • 8x M2*20 socket head
      • 1x M3*20mm grub screw
      • 2x M3*20mm socket head
      • 2x M3 lock nuts
      • Super glue or plastic cement
      • Hot glue

    • Assembly Instructions

      Assembly Instructions

    • Printing Tips

      Requires a printer that can print a minimum volume of: 220x175x150mm



      PLA+ filament

      0.3mm layer heights

      10% infill density

      Supports are necessary

    • Finished and Assembled Size

      397*230*178mm (All parts assembled including bumper

    • More Pictures

      More pictures can be found here:

      More pictures

    HK$150.00Price
