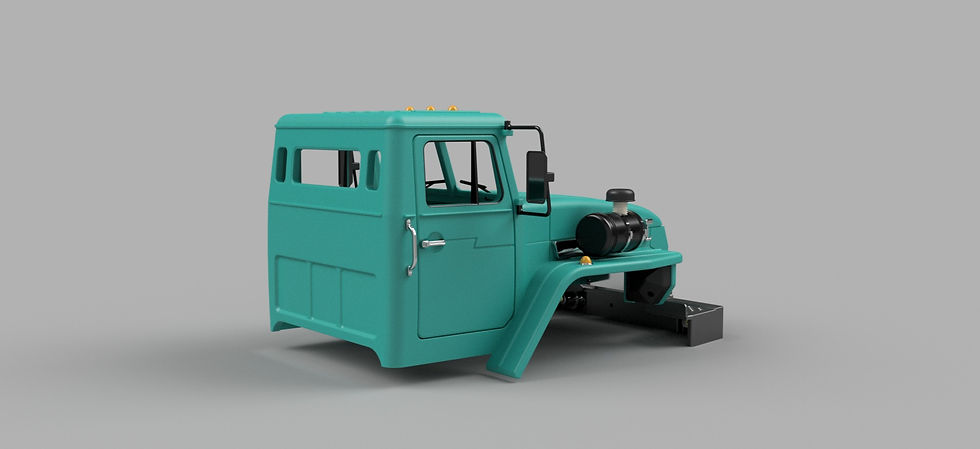

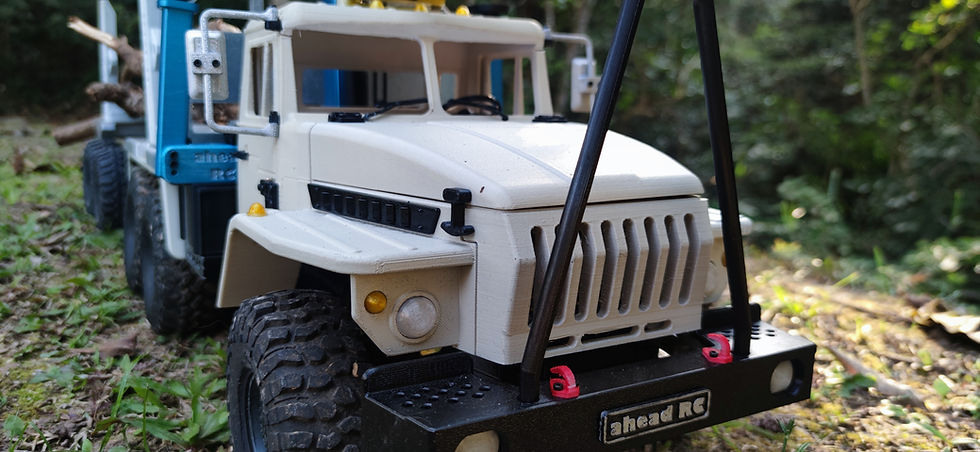

DIGITAL FILE Crawler 4320 V2 Single Cab - 1/10 RC body
Please note the expedition suite, logging bed, crane, tyre carrier and trailer in the pictures are SOLD SEPARATELY.
In the past, we released the 4320 Dual and Single Cab, which quickly became one of our most popular 3D models, thanks to your support! Since then, we've received a wealth of feedback on what you’d like to see in these designs.
Taking all of this into account, we went back to the drawing board and completely re-engineered the model from the ground up. We’ve decided to focus on 4 major improvements to implement over the old design:
Increase durability, have better parts replaceability, simplify printing and assembly process, and deliver more features.
We’ve crash tested, identified, and optimized the parts that needed beefing up. Broken parts need to be replaced, so almost all parts are mounted with screws, which makes replacing parts easier than ever. We’ve also merged some parts together to reduce the sheer amount of printing parts the old version had, which helps save time and hardware when assembling. Smart solutions have been integrated for more interaction, distancing the design further away from a static model. Option of 2 variants of the cab have also been included to let you choose which time period of the design suits your build the best.
The overall look has been kept as close to the original as possible, but ~90% of the parts have been modified and redesigned. Almost none of the parts can be cross used with the original 4320 body. Scale and size are the same as before though, so the new cab can still be used for the series of 4320 expedition suites.
Tyre outer diameter: 120mm
Outer tyre to tyre width: 230mm (use wider for more capable and aggressive stance)
Body mounts for SCX10 ii, VS4-10 Pro, SCX10 iii (and basecamp), TRX4, TRX6 are included. These mounts are bolted directly into the chassis rails. Please provide your own screws. Mount thickness is 8.5mm. Please also note that any inner fenders need to be removed or modified. TRX4, TRX6, fender integrated shock towers, please use aftermarket shock towers.
Some features and details included:
Short nose and long nose versions
Short nose specific snorkel
Long nose specific snorkel
Functional door and bonnet hinges
Magnet latched doors
Magnet latched bonnet

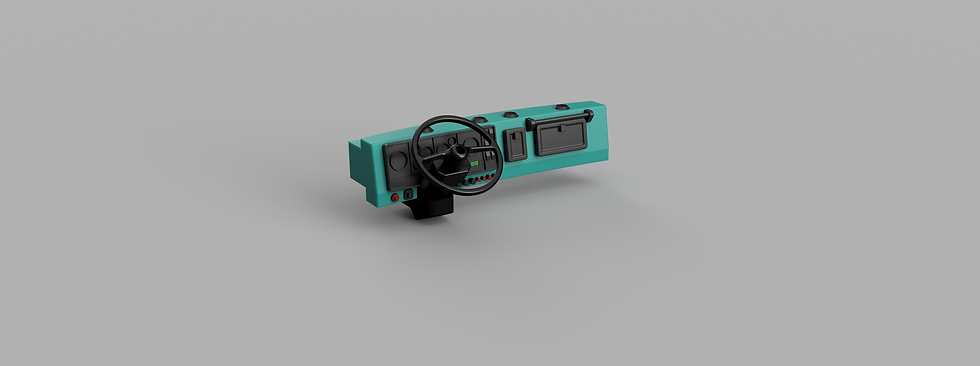

Detailed dashboard, steering wheel and column
Improved cab to roof mounting
Thicker and stronger A pillars
New screw mounted front and main cab section for easier assembling and replaceability
New screw mounting method for grille for better durability, easier replaceability, better cab front structural rigidity
Short nose and long nose bumpers
Integrated bumper mounts makes mounting bumpers much easier
Crane bumper included
Updated cab side grille mounting method for much easier printing and assembly
Fully functional light buckets
Larger diameter mirror arms
Simplified mirror mounting
Wipers
Stronger and easier to print bonnet latch handles
Merged fender and front section of cab for more flush mounting and easier printing
The old version of the cab is still included and downloadable if you want to experiment or for printing parts for repairs.
Be sure to check out the instruction manual and gather all required hardware for assembly.
*It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.*
Assembly instructions:
View the link below to download the assembly instructions
https://www.aheadrc.com/manual
Included Options
Cab:
-
Cab full (the cab is a 1 piece print, including the roof, flanks, and the cab itself. This is the cleanest print but requires a printer that can print a minimum of 277x175x165mm.)
-
Cab split version (comes in 3 parts. The cab, roof, and flanks. This is the quickest print option as it uses the least amount of supports. Requires a printer that can print a minimum of 155x175x145mm.)
-
Cab side panels (comes in 2 varieties. The vented version can be fitted onto both sides of the cab. A special version for the right side is also included specifically for use with the air filter.)
Bonnet:
-
Bonnet bump (bump version has the engine clearance bump and is more accurate to real life)
-
Bonnet smooth (doesn’t have the bonnet bump)
Fender:
-
LED version (has cable routing for 3mm LED light for fender indicator light)
-
Standard version (Does not have routing, does not have hole to fit 3mm LED light for indicator light. Still allows the cab light bucket to be fitted)
Bumper:
-
Blank number plate (hides the 2x bumper mount screws and gives a clean look)
-
Logo number plate (ahead RC’s logo on the front. Hides bumper mount screws)
-
Custom number plate (it is possible to design your own bumper plate with the following specs to fit into the bumper’s slot. [Draw a 3D rectangle with dimensions of 52*12*5mm. Add 2mm fillets to each corner. Add your own number or design to the front of the plate. At the back of the plate, draw a centerline and place two 5mm circles with a total spacing of 43mm apart. Cut the circles into the number plate to a depth of 3.2mm.] It may be necessary to shrink the outer perimeter by 0.2mm for a looser and better fit.)
-
Bumper mount (there are 6 different bumper mounts included, each varying in different offsets to best suit your rig’s ground and body clearance. The bumper mounts are designed to slot directly into the standard crawler bumper slots, with 43mm width from post to post.)
Accessories:
-
Cab side handles (3 types of handles available to mount to the side of the cab. Long railing, short railing, and standard grab handle)
-
Air filter (Can be fitted with the included “mushroom” air filter part. If using the air filter, please also use the appropriate cab side panel to allow mounting it. If not using air filter, then the standard cab side panel with vents can be used instead)
-
Horn (3 styles of horn to choose from which can be mounted anywhere on the body using either superglue or hot glue)
-
Files To Be Printed Twice
-
Bonnet Latch
-
Fender light bucket
-
Fender headlight lens
-
Fender blinker light bucket
-
Fender blinker lens
-
Fender light
-
Door handle (print a total of 2)
-
Cab light (print a total of 3)
-
Accessories cab handle (whichever version you chose, double it)
-
Bumper hook
-
Cab hinge
-
Required Hardware
- 22x M2*5 Socket head
- 24x M2*10 Socket head
- 2x M2*15 Socket head
- 8x M2*20 socket head
- 1x M3*20mm grub screw
- 2x M3*20mm socket head
- 2x M3 lock nuts
- Super glue or plastic cement
- Hot glue
Assembly Instructions
Printing Tips
Requires a printer that can print a minimum volume of: 155x175x145mm.
PLA+ filament
0.3mm layer heights
10% infill density
Supports are necessary
Finished and Assembled Size
305*230*178mm (All parts assembled including bumper)
More pictures
More pictures can be found here:
