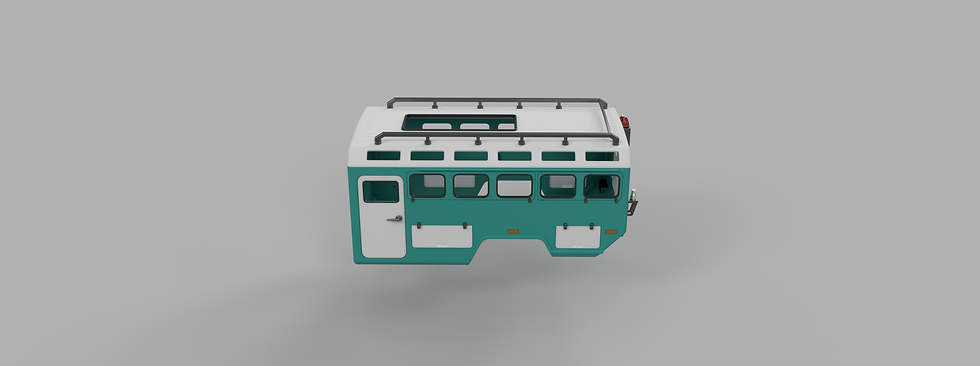

DIGITAL FILE Crawler 4320 Expedition Long Cab - 1/10 RC body attachment
  • DIGITAL FILE Crawler 4320 Expedition Long Cab - 1/10 RC body attachment

    This body attachment is intended for scratch builds and DIY projects. Market ready chassis such as stock or modified SCX10, SCX10 ii, SCX10 iii, TRX4, VS4-10 are not compatible with this body attachment.



    THIS IS A DIGITAL FILE FOR 3D PRINTING, NOT A PHYSICAL PRODUCT. Physical product sold separately.

    PLEASE make sure your 3D printer is able to print a minimum size of 205x240x215mm before purchasing.



    We’ve released the Expedition Cab for the Crawler 4320 Dual Cab earlier. But now you can enjoy a more luxurious expedition experience with the new, longer expedition cab add-on attachment designed for the Crawler 4320 Single Cab in 420mm wheelbase and 4x4 configuration! (Truck body is sold separately)



    The “Crawler 4320 Expedition Long Cab” is also HIGHLY RECOMMENDED for use with the Dual Cab version of the Crawler 4320 as it makes your build that much more unique. A 510mm wheelbase, extended chassis rails, and extended drivetrain are required. A rendering of this configuration is attached. Crawler 4320 Dual Cab body can be found here



    In principle, the original Crawler 4320 DC expedition cab shares the same features;



    Including a ton of details, and 5 slots for cab LED sidelights with lenses, which uses 3mm LED lights. The tail lights are also functional with six 5mm LED lights.



    Another feature included is the true functioning door latches for the side and rear double doors. The door latches simply lock and unlock the doors so you won’t have to devise your own door latching system. Hinges are not included though as they will need to be metal to take the beating on the trail.



    External compartment lids are included, which means you can actually store things in them providing hinges and an internal storage area is fabricated or sourced. 2 more compartments have been added for more space to put things.



    Small details such as the 2 side vents, external power socket and mock hinges are also designed to make the cab look as realistic as possible.



    Accessories for mounting onto the rear wall are also provided, and are modular. This means you will be able to switch the accessories around and mount them how you like.



    Instead of the 18 window openings for the previous expedition cab, there are now 22 cab side window openings, which allow you to mount 8 pieces of clear polycarbonate sheets to simulate the windows. Also a larger sunroof! This will no doubt give the suite more natural sunlight.



    Last but not least, the roof rails are also fixed in place with M3 screws, meaning they will be strong, allowing you to tie things down onto it, such as our truly extensive range of overlanding accessories!




    Assembly instructions:

    View the link below to download the assembly instructions (same instruction manual as the “Crawler 4320 DC Expedition Cab”)

    https://www.aheadrc.com/manual




    A .zip file containing all the print files is also included for convenience. DXF files for the windows are also included.





    *It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.*



    Should you need any help, please do not hesitate to contact us!

    • Included Options

      A couple of versions are also included for printing optimisation:



      Cab

      • Full dimensions (Requires printer with build volume of at least 205x240x415mm)

      • Split front and rear (Require printer with build volume of at least 205x240x215mm)



      Roof rails

      • Split

      • Full length

    • Files To Be Printed Multiple Times

      • Tail lights x2

      • Tail light lenses x6

      • Window hinges x8

      • Side compartment hinges x8

      • Side vents x2

      • Sidelight lenses x5

      • Split cab joiner x2

    • Required Hardware

      1x M2*5mm socket head

      18x M2*10mm socket head

      36x M3*10mm countersunk

      23x M3*10mm socket head

      12x M3 nylon lock nut

      2x M3*20mm grub screw

    • Assembly Instructions

    • Printing Tips

      FDM printing:



      Requires a printer that can print a minimum volume of: 205x240x215mm.



      PLA+ filament

      0.3mm-0.4mm (0.6mm nozzle) layer heights

      20-30% infill density

      Supports are necessary

      Print cab body vertically for less supports

    • Finished and Assembled Size

      Finished and assembled size:

      446*235*211mm (All parts assembled)

    • More pictures

      More pictures can be found here:

      More pictures
