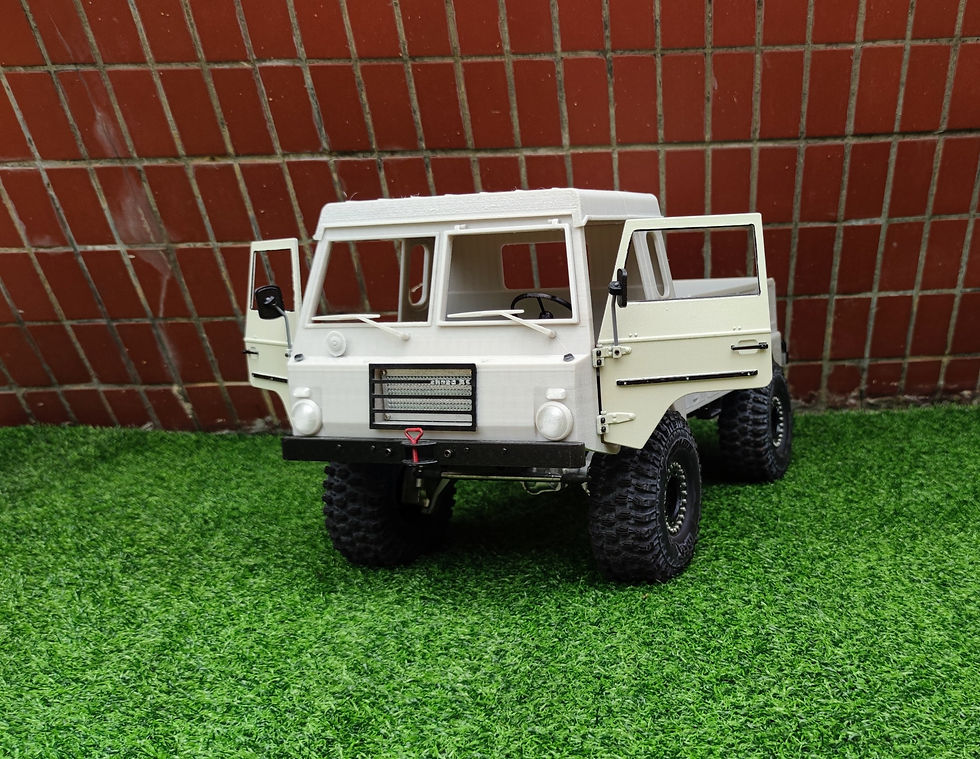

DIGITAL FILE Crawler V306 Front Cab - 1/10 RC body
PLEASE make sure your 3D printer is able to print a minimum size of 180x220x158mm before purchasing.
UPDATE: Floor plan is now added! The floor plan was initially designed for the Vanquish VS4-10 chassis with stock shock towers. If you are using a different chassis, some trimming or cutting may be necessary.
The V306 front cab is a variant of the V303, made to fit on the VS4-10 Pro, SCX10 iii, and TRX4 chassis with the provided mounts.
As this is a front cab only practically all wheelbases will work. The V306 front cab on its own therefore is a good body option for full custom builds. However it was also designed to work together with the 4x4 Flatbed for the V306 (sold separately).
Ideally 110-115mm diameter tyres and 230mm outside tyre to tyre width would give the best scale proportions, however 120mm tyres would also work for a more aggressive off-road setup.
Be sure to check out the instruction manual and gather all required hardware for assembly.
Please ensure your printer can print a volume of 180x220x158mm.
*It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.*
Assembly instructions:
View the link below to download the assembly instructions
https://www.aheadrc.com/manual
.DXF files for all windows can be found here:
https://www.aheadrc.com/dxf-files
Should you need any help, please do not hesitate to contact us!
Included Options
As always features and details are the most important with our designs.
-
The doors have in-built hinges, so no need to source your own hinges.
-
Windshield can be flipped up or down just like in real life.
-
Front bumper towing recovery pin
-
Rear bumper towing hook.
-
High clearance bumper also included.
-
All light buckets are functional, use 5mm and 3mm LEDs.
-
Interior door panels with handles.
-
Sidesteps.
-
Detailed exhaust system.
-
Detailed interior dashboard.
-
Adjustable mirrors
-
Required Hardware
-
M2*5 Socket head x19
-
M2*8 Socket head x3
-
M2*10 Socket head x11
-
M3*10 Socket head x3
-
M3*15 Socket head x12
-
M3*25 Socket head x2
-
M3*10 Button head (BH) x2
-
M3*15 Countersunk (CS) x2
-
M3*3 Grub screw (GS) x4
-
M3*10 Grub screw (GS) x2
-
M3*20 Grub screw (GS) x2
-
1*6 Dowel Pin 2
-
Assembly Instructions
Printing Tips
FDM printing:
Requires a printer that can print a minimum volume of: 180x220x158mm.
PETG filament
0.2mm-0.3mm (0.4mm nozzle) layer heights
20-30% infill density
Supports are necessary
Finished and Assembled Size
Finished and assembled size:
328*218*177mm (All parts assembled excluding rear bumper and mirrors)
