DIGITAL FILE Crawler G90 4x4 Expedition Suite - 1/10 RC body attachment
PLEASE make sure your 3D printer is able to print a minimum size of 210x220x175mm before purchasing.

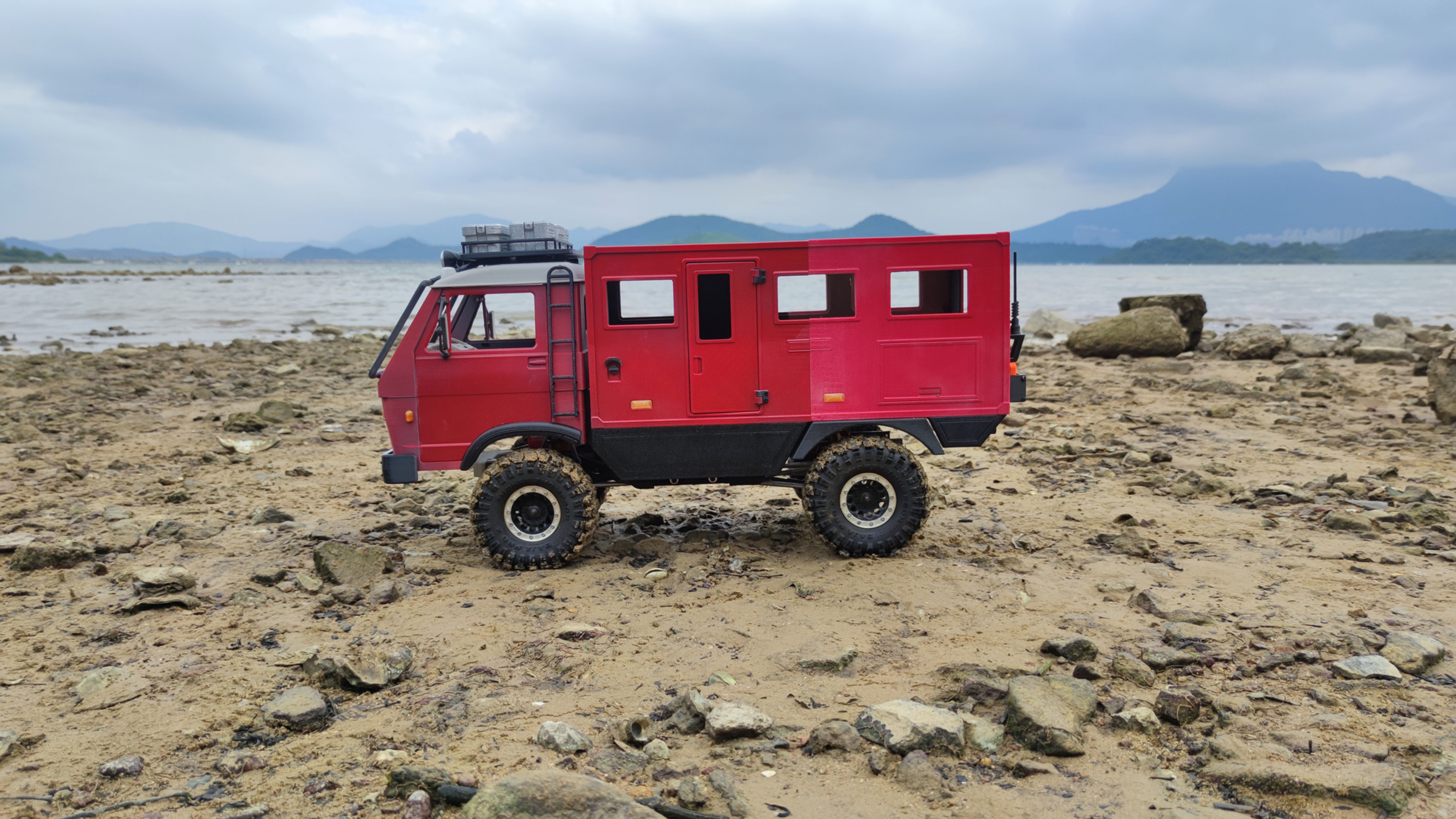

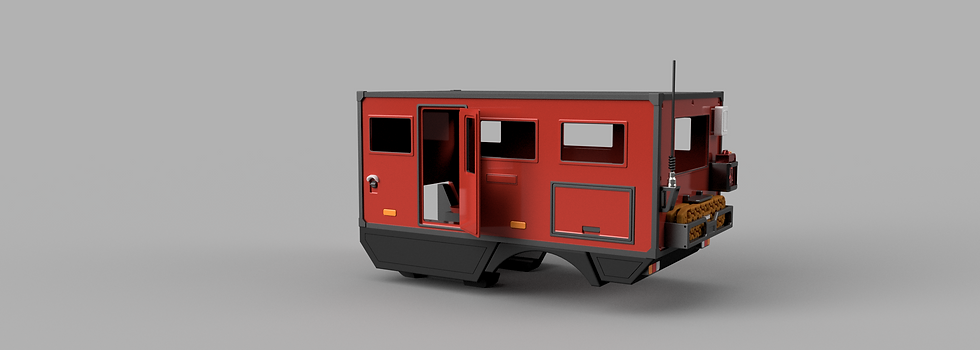

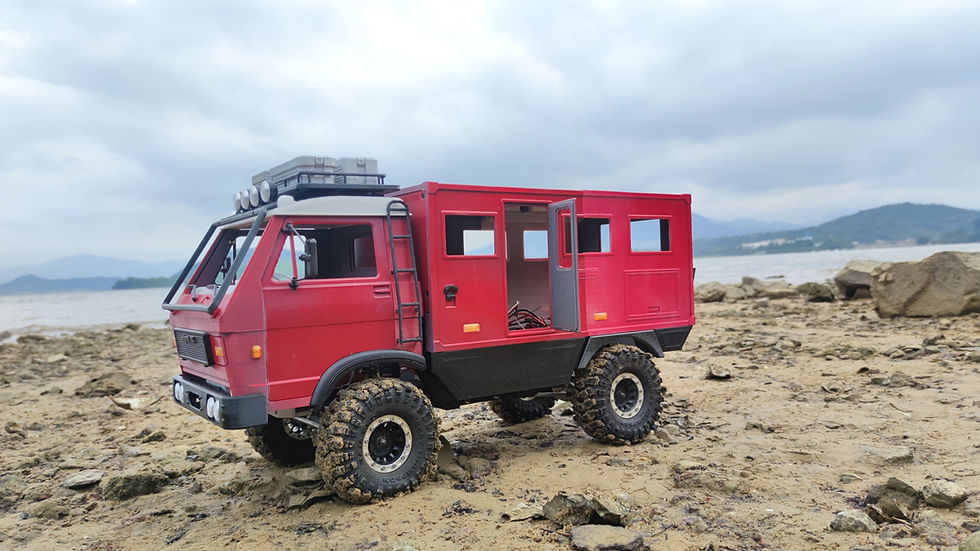

It’s time to go exploring again! The all new G900 4x4 Expedition Suite was designed to work specifically with the G900 Single Cab (sold separately).
The G900 Single Cab and G900 4x4 Expedition Suite combo works well with the VS4-10 Pro, SCX10 ii, SCX10 iii, TRX4, in both 313mm and 324mm wheelbase with the provided trail ready chassis mounts. The mounts also make installing and removing the body combination super easy, with just 4 screws.
The industry standard 313mm wheelbase gives this matching combination the perfect scale proportions, while maintaining its relatively nimble handling characteristics.
As the rear fenders can be shifted 10mm towards the rear, the TRX4’s 324mm wheelbase will also fit. Compensated side panels are also included, this will maintain the scale realistic look, while being able to utilise the benefits of the TRX4’s longer wheelbase.
Similar to the G900 Single Cab, the 4x4 Expedition Suite works best with 120mm diameter tyres, with outside tyre to tyre width of 220mm. A wider set of fenders are included for a more aggressive stance of 240mm in width.
Be sure to check out the instruction manual and gather all required hardware for assembly.
Please ensure your printer can print a volume of 210x220x175mm.
*It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.*
Assembly instructions:
View the link below to download the assembly instructions
https://www.aheadrc.com/manual
.DXF files for all windows can be found here:
https://www.aheadrc.com/dxf-files
Should you need any help, please do not hesitate to contact us!
Included Options
The G900 Expedition Suite comes packed with features and includes scale accessories to match the look.
-
1/10 scale functional traction boards with storage mounts
-
Radio antenna of 2 different lengths
-
Fuel can
-
Small accessories box
-
Power socket cap with rain shield
-
Modeled air vents
-
Functional cab side blinkers for 3mm LEDs (4x orange)
-
Functional rear lights for 5mm LEDs (2x red 2x orange, 2x white)
-
Functional door with included hinges
-
Standard width and extra wide fenders (220mm and 240mm widths)
-
313mm and 324mm wheelbase suitable (fenders can be shifted to fit)
-
Length compensated side panels are included to fit the 2 different wheelbases.
-
Required Hardware
-
M2*5 Socket head x16
-
M2*10 Socket head x8
-
M2*12 Socket head x2
-
M3*10 Socket head x20
-
M3*15 Socket head x12
-
M3*10 Countersunk (CS) x12
-
M3*3 Grub screw (GS) x1
-
Assembly Instructions
Printing Tips
FDM printing:
Requires a printer that can print a minimum volume of: 210x220x175mm.
PETG filament
0.2mm-0.3mm (0.4mm nozzle) layer heights
20-30% infill density
Supports are necessary
Finished and Assembled Size
Finished and assembled size:
411*220*216mm (All parts assembled excluding mounts)
More pictures
More pictures can be found here:
